| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Product Type: | Printing Products |
| Processing Type: | Printing Products | Voltage: | 380V |
| Power: | 6KW | Dimension(L*W*H): | 2300*960*1400mm, 2300*960*1400mm |
| Weight: | 600 Kg, 600kg | Warranty: | 1 Year |
| Production Capacity: | 20 M/min | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2023 |
| Warranty Of Core Components: | 1.5 Years | Core Components: | PLC |
| Model: | CQT-540 | Maximum Laminating Width: | 540*740mm |
| Laminating Speed: | 0-20m/min | Laminating Temperature: | 60-130℃ |
| Thickness Paper: | 120-350g/㎡ | Total Power: | 6KW |
| Port: | HUANGPU |

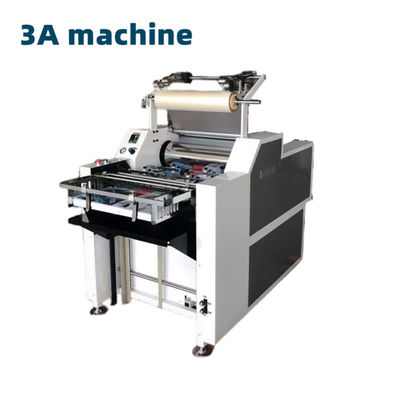

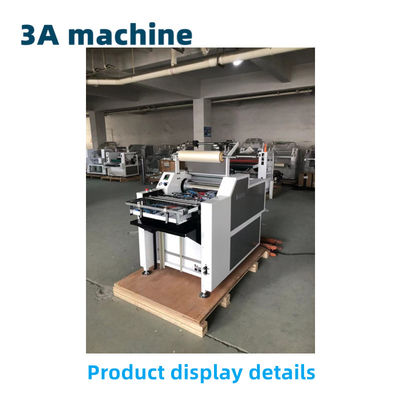

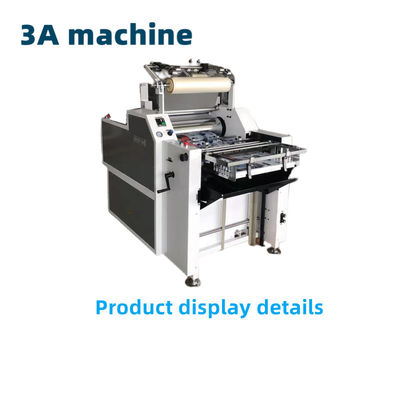

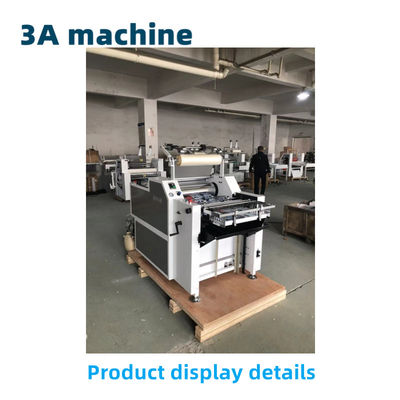

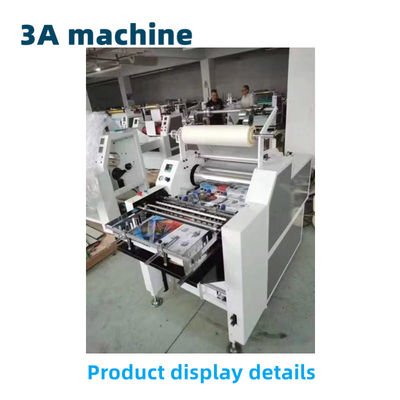

CQT-540 automatic laminating machine is a pre-coat compounding equipment meticulously researched and developed by our company according to the market demand. This machine possesses the features of compact structure, small area occupancy and convenient operation.
1. Adopt the pneumatic pressure compound.
2. Adopt the automatic paper feeding mechanism and realize once finishing of feeding, laminating and slitting.
3. The paper feeding mechanism is the pre-paper feeding structure, servo motor drive.
4. The edge lapping adopts the back-paper press pre- paper mode, while operating, only input the sheets length, the edge lapping length can achieve the automatic laminating, the edge lapping precision can reach up ±2mm.
5. The cylinder uses the guide heating oil to heat, surface temperature measurement, accurate and uniform temperature.
6. Equip with the thin paper anti- curl device, so as to ensure the thin paper compounding no crimp.
7. Equip with the front and back way holing device, which can prevent the paper breaks after cutting or before cutting while holing on the film so as to realize the more stable operation.
| Model | CQT-540 |
| Maximum laminating width | 540*740mm |
| Laminating speed | 0-20m/min |
| Laminating temperature | 60-130℃ |
| Total power | 6kw |
| Weight | 600kg |
| Dimension(L*W*H) | 2300*960*1400mm |
More Service details
Questions : What is the production time after placing an order?
Answer : About 15 days.
Questions : Do you have machines in stock?
Answer : Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
