Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1.5 Years | Core Components: | PLC, Gearbox, Motor, Gear |
| Condition: | New | Automatic Grade: | Automatic |
| Usage: | Paper Forming Machine | Voltage: | 380V |
| Dimension(L*W*H): | 7.1mX1.1mX1.4m | Weight: | 1300 KG |
| Warranty: | 1.5 Year | Key Selling Points: | Easy To Operate |
| Manufacturer: | Looking For Agency Worldwide | Product Name: | Automatic Folding Carton Box Gluing Machines |
| Box Unfolded Widest Paper Size: | 800mm | Box Expanded Minimum Size: | 100mm |
| Paper Material: | Cardboard 250g-650g | Way Of Folding: | Stick Single Side |
| After-sales Service Provided: | Long-term Supply Of Accessories | Safe And Reliable: | Strong Stability |
| Good Safety Performance: | Easy To Use | Simple Maintenance: | Low Maintenance Cost |
| Marketing Type: | Hot Product 2019 | Port: | HangPu |
We are in Guangdong Province, China. We are a professional manufacturer of Folding Gluing Machine. Our folder gluers are high quality, they sold all over the world. We have large machining centers, large production workshops. The machine is robust and durable, Advanced design, the assembly is rigorous, Easy to adjust, Simple operation. Folding box glue box works perfectly. It is well received by the majority of users.
Product parameters
|
MODEL |
CQT-800 BOX FOLDING AND PASTING MACHINE |
|
PAPER |
PAPERBOARD 250g-650g |
| MAX LINER SPEED SPEED |
250 METER / MINUTE |
|
FEEDING PAPER |
AUTOMATIC CONTINUOUS PAPER FEEDING |
|
GLUE |
WATER SOLUBLE COLD GLUE |
|
VOLTAGE |
380V3P |
|
POWER |
4.5 KW |
|
BOX TYPE |
A Paper size |
B Paper size |
|
|
110-750mm |
50-800mm |
The above parameters are adjusted according to different box types
Volume/weight without wood packaging
| CQT800 MODEL | LENGTH*WIDH *HEIGHT |
WEIGHT
|
| Fold and paste part | 3.5M* 1.1M *1.4M | 900kg |
| Pressed part | 3.6M* 0.9M *1.3M | 400kg |
Volume/weight of packaging with wood
| CQT800 MODEL | LENGTH*WIDH *HEIGHT |
WEIGHT
|
| Fold and paste part | 3.8M* 1.4M *1.7M | 900kg |
| Pressed part | 3.9M* 1.2M *1.6M | 1000kg |
Performance Characte

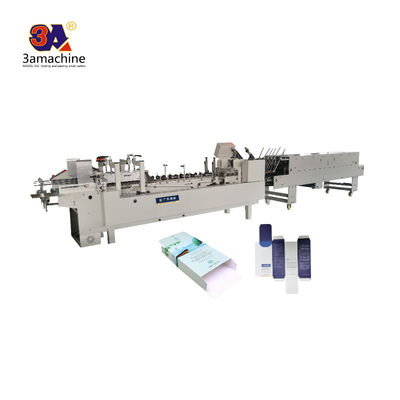

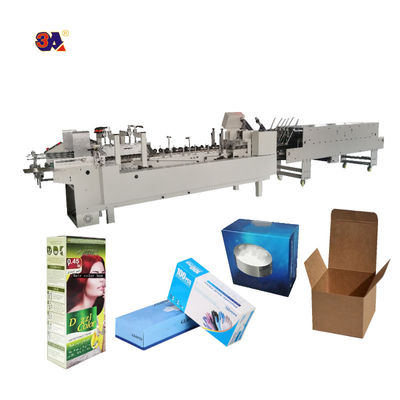

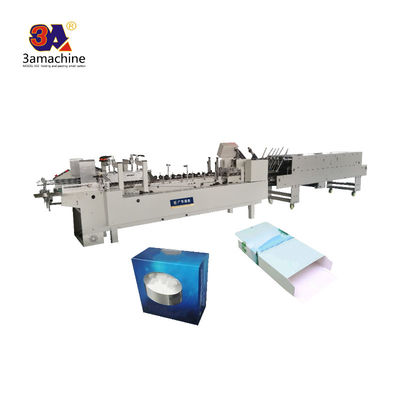

1. Automatic box folder gluer machine is used for side gluing of paperboard box.
2 .It's ideal equipment for printing & packaging industry because of its stability, versatility and flexibility.
3. It's available to paste various boxes,like medicine box, cosmetics box, Tea box, toy box, mask box. glove box etc..
5. Available to count automatically.

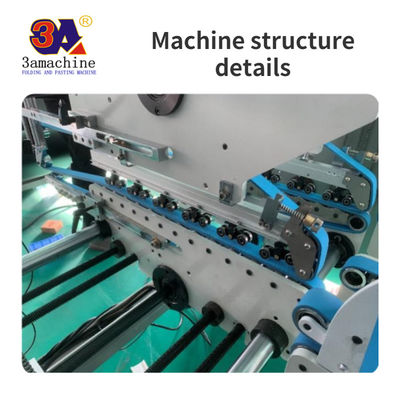

6. The feeding part is controlled by servo motor, which is more advanced and more stable.
7. high automatic, easy and convenient for operation.
Other popular models
welcome to choose
CQT380 / RE500 / CQT580 / CQT650
Our Services
*One year warranty.
*During the warranty period, the parts are damaged and replaced free of charge.
*Feel free to contact the after-sales department,Free video tutorials.
*Other human factors such as violations of operations are excluded.
*The belt is a wearing part and is not covered by the warranty.
More Service details
Contact us
Questions : What is the production time after placing an order?
Answer : About 20 days.
Questions : Do you have machines in stock?
Answer : Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
Questions : What is the production time after placing an order?
Answer : Yes, just give us the destination seaport or container yard..
Questions : What is the production time after placing an order? Answer : About 20 days.
Questions: Can you calculate the freight costs of our ports?
Answer : Yes, just give us the destination seaport or container yard..
