Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Year: | 2022 |
|---|---|---|---|
| Dimension(L*W*H): | 14*1.2*1.4m | Weight: | 3500 KG |
| Automatic Grade: | Automatic | Voltage: | 380V |
| Power: | 9kw | Machinery Capacity: | 350 M / Minute |
| Key Machines: | Auxiliary Packaging Machines, Boxing Machines, Packaging Forming Machines, Gluing Machines | Packaging Material: | Paper, Paper Card |

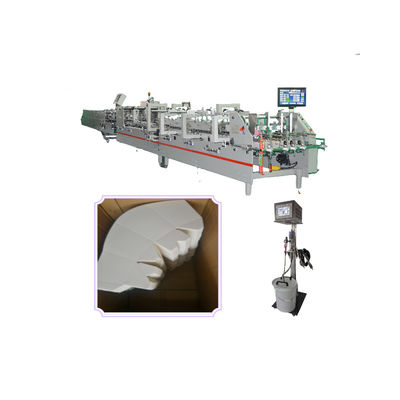

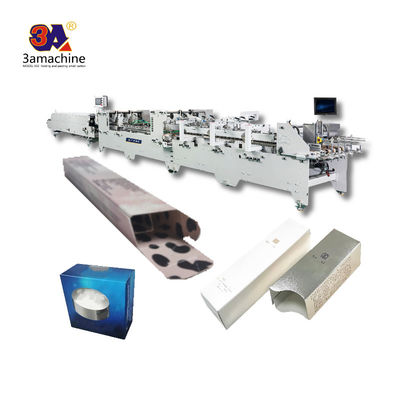

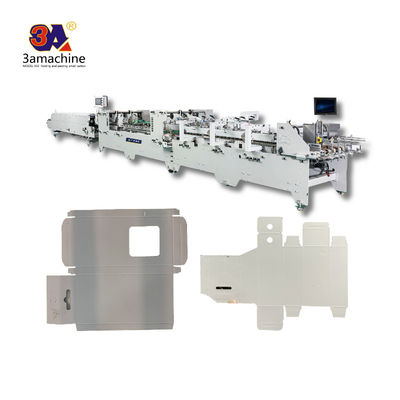

| Product Name: | Automatic High-speed Folder Gluer | PAPER: | Paperboard 250g-650g |
| MAX LINER SPEED SPEED: | 350 M / Minute | MAXIMUM PAPER WIDTH 1: | 850mm (Single Side Box) |
| MAXIMUM PAPER WIDTH 2: | 800mm (Bottom Folding Box) | FEEDING PAPER: | Automatic Continuous Paper Feeding |
| GLUE: | Water Soluble Cold Glue | VOLTAGE: | 380V3P |
| WIGHTE: | 3500KG | Port: | HuangPu |
MODEL | CQT-850A PAPER BOX FOLDER GLUER |
Features | *Feeding section Equipped with air suction function *Aligner section adopts independent motor drive, equipped with automatic correction device to correct , the obliquity and ensure the correct feeding. * Bottom folding Independent motor drive, equipped with upper gluing tank. * Folding, Equipped with 3 plate type rail device. The upper pressure belt adopts the main drive * Pressing and Transmission unit has regulator, patting device, can effectively avoid the "scissors mouth" * Optional matching automatic spray gun system |
Maximum paper width | 850mm (Single side box) |
Minimum paper width | 800mm (Bottom folding box) |
Paper | Paperboard 250g-650g |
Max liner speed | 350 Meter/ Minute |
Feeding paper | Automatic continuous paper feeding |
Glue | Water soluble cold glue |
Voltage | 380V3P |
Power | 9KW |
Wighte | 3500KG |
Volume size | Length 14 m * Wide 1.2 m * Height 1.4 m |
