Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling

Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling

Large Image :  Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling

Product Details:
Place of Origin: Guangdong, China
Brand Name: 3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $18,000.00/sets >=1 sets
Packaging Details: Wooden box
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Multi-Function Packaging Machine Production Capacity: 50bag/min
Applicable Industries: Manufacturing Plant, Printing Shops, Other Weight (KG): 1300
Showroom Location: None Condition: New
Function: Wrapping, Capping, Counting Application: Food, Commodity
Packaging Type: Bags, Foil, Wooden Box Packaging Material: Wood
Automatic Grade: Automatic Driven Type: Electric
Voltage: 220V/380V,50HZ 1.5kw Dimension(L*W*H): L3.1m*W1.25m*H1.7m
Warranty: 1 Year Key Selling Points: Easy To Operate
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, PLC, Other
Automatic: Cartoning Machine Marketing Type: Hot Product 2022

Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 0
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 1

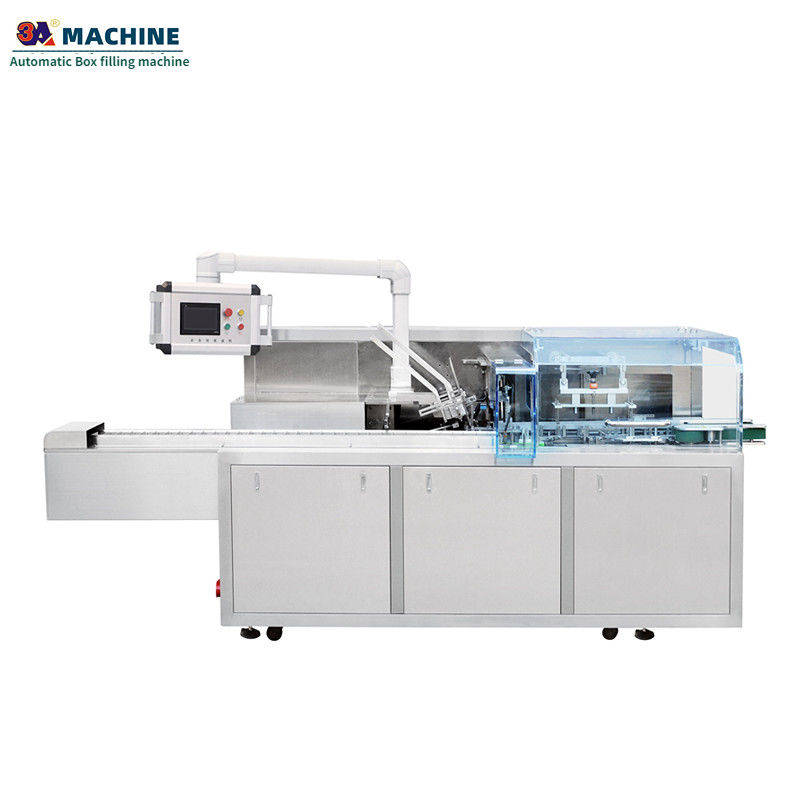

120 Automatic Box filling machine

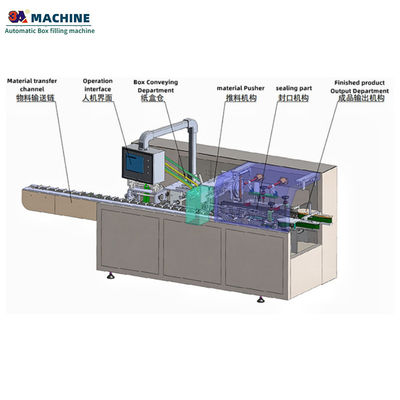

Feeding - Opening box - entering box - sealing box - output
The machine is a high-tech product integrating optical, electrical, gas and machine. The machine is suitable for automatic packing of a variety of products, its working process: transfer material - spread-box - transfer box - loading material - closed box mouth.

Linear machine speed
50-80 pcs/min
Paper box requirements
220-350g/ m²
Paper box size
L(80-210)*W(20-90)*H(10-60)mm
Power
220V/380V,50HZ 1.5kw
Overall dimensions
L3.1m*W1.25m*H1.7m
Weight
1300kg
Air pressure
≥0.6Mpa
Air consumption
20 m3/H

Performance Characteristics
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 2
1. The shape of the model is all 304 stainless steel cover, the transmission part is designed with overload protection function, and set up the emergency stop device, the control system uses the man-machine interface video screen, to ensure the personal safety of the operator.
2. Servo/stepper motor and touch screen, PLC programmable control system, human-machine interface display operation more clear and simple, high degree of automation, more user-friendly.
3. Photoelectric induction switch automatic detection and tracking system, no product no suction box, saving packaging materials.
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 3
4. Large packaging range, convenient adjustment, various sizes can be quickly converted. 5. No need to change the mold to change the specifications, just adjust the realization. 6. When there is no product or the product supply is not in place, the machine will idle and not push the product. When the product is restored to the supply, the machine will run automatically, and the product will stop automatically if the box is not in place. 7. The two ends of the carton are automatically sealed, and the finished products are transported out through the belt. The finished products have good effect.
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 4
8. Automatic display of packing speed and count: 9. According to customer requirements, the upturning type safety protective cover is adopted, which is easy to operate and beautiful in appearance. 10. Can be connected with aluminum labeling machine, inkjet printer, online weighing instrument and other equipment, to achieve linkage production; According to customer requirements, the hot melt glue machine can be selected to use hot melt glue spray sealing box.
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 5
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 6

List of main components
NO
Name
Brand
Quantity
1
PLC
Omron, Japan
1
2
Encoder
Omron, Japan
1
4
Frequency converter
Omron, Japan
1
9
Button
Schneider, France
3
11
Intermediate relay
Omron, Japan
5
12
AC contactor
Schneider, France
1
13
Proximity switch
Omron, Japan
2
17
Sensor
Omron, Japan
1

Details
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 7

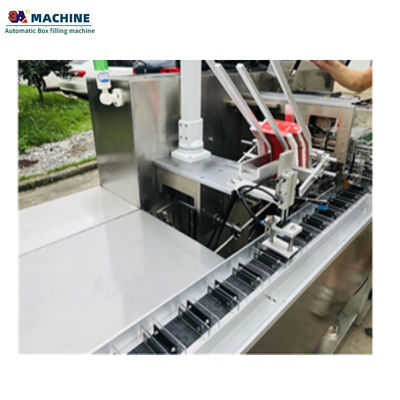

Material conveying chain
Multi-Function 50bag/min Box Filling Machine for Precise and Consistent Filling 8

Carton bin
