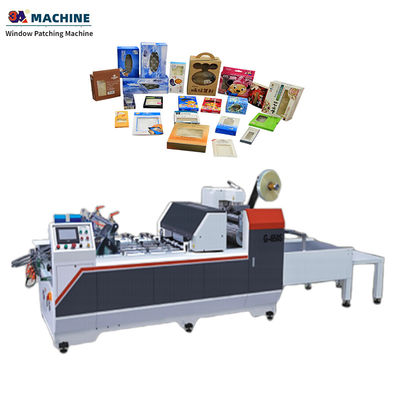

Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

Large Image :  Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching

Product Details:
Place of Origin: Guangdong, China
Brand Name: 3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $21,000.00/sets >=1 sets
Packaging Details: Wood packaging
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Applicable Industries: Manufacturing Plant, Advertising Company, Other Showroom Location: None
Condition: New Product Type: Paper Plate Machine
Processing Type: Paper Folding Machine Voltage: 380/415V
Power: 50/60Hz 5KW Dimension(L*W*H): L540 * W130 * 160cm
Weight: 1800 Kg Warranty: 1 Year
Production Capacity: 1500-30000 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: Hot Product 2022
Warranty Of Core Components: 1 Year Core Components: PLC, Motor, Pump
High-speed: Window Patching Machine Port: Wood Packaging

Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 0

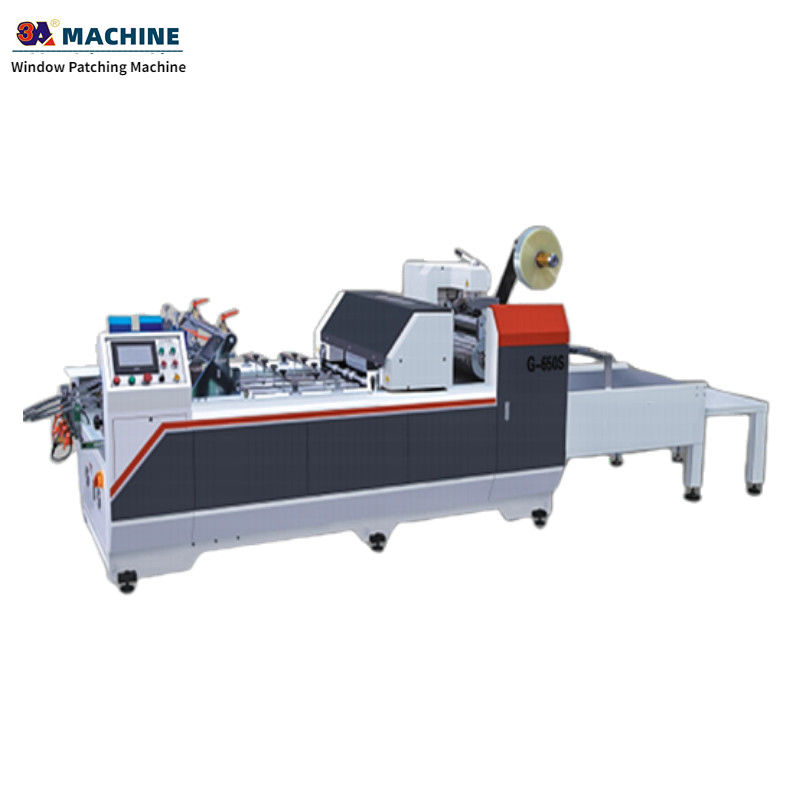

650S Window Patching Machine
Full-automatic High-speed


Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 1
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 2
Hob cutting film + Single group film applicator
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 3


1.Producible Box Sample

Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 4

Cake box
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 5

Corrugated carton


Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 6

General box

Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 7

Paper towel box


2.Function

lHob cutting film + Single group film applicator lServo motor paper feeding lServo motor film feeding lPaper receiving stepper with batch counting lPaper vacuum adsorption transport lDouble sheet / empty sheet gluing rising automatically lPaper length L ＜ 260mm double sheet mode The following functions are optional and need to be upgraded for a fee. Please confirm whether to purchase them before purchasing Follow lable of film printing surface(optional) Film with punching holes (optional) Tissue box film middle cut (optional)


3 . Specifications

Model
650S
Max .Paper Size
W650 x L550 mm
Mini .Paper Size
110x110mm
Paper gram above
Kraft Paper：150-1200g/㎡
White Cardboard ：230-1200g/㎡
Corrugated Paper：≤3mm
Max .Film
W290 x L300 mm
Mini .Film
W30xL50mm
Film Thickness
CPE/PE:0 . 1-0 . 3mm
PVC:0 . 08-0 . 25mm
APET/PET:0 . 06-0 . 2mm
Max .Film Unwinding Diameter
400mm
Paste error
±2mm
Maximum Speed
Paper L≤260mm ：30000pcs/h
Paper L＞260mm ：15000pcs/h
Servo Motor
Driving part ：Paper feeding department 1 set
film delivery department 1 set
Stepping Motor
Driving Parts ： Automatic paper receiving 1 set
Machine Size
L540 x W130 x 160cm
Power
380/415V 50/60Hz 5KW
Overall Weight
1800kg


4 .Partial introduction


Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 8

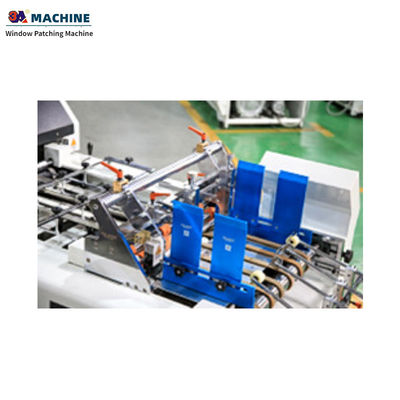

Paper feeding department :
Adopt belt feeding paper ,it is suitable for coated,reverse UV, nano UV, oily and waterborne paper, kraft paper and corrugated paper.

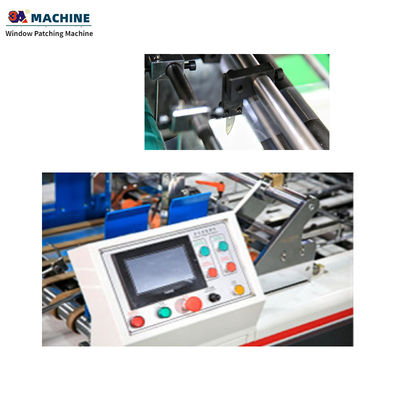

Operating interface :
All the parameters and functions of the switch are operated in the touch screen, and the operation panel is equipped with a "Inch, start, stop, speed adjust" quick operation button .
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 9
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 10
Paper correction track ：
Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation .
Vacuum adsorption ：
Paper is vacuum absorbed by perforated belt in the whole process of gluing and pasting . It runs steadily at high speed and has high precision .
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 11
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 12

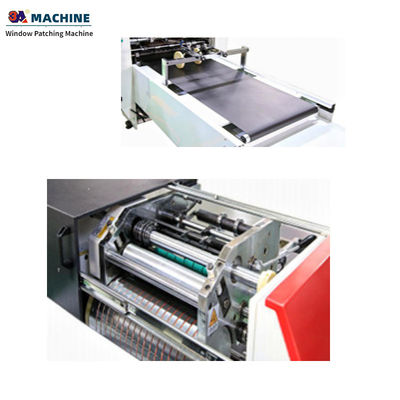

Paper collecting department
Single stepper motor controls theoperation of paper collecting belt .Paper-folding distance can be adjusted wholly or segmentally and run at multi-speed .
Rolling cutting and absorbing of thin film：
Film cutting hob is a local sectional design. Compared with traditional whole section cutting,it has lower noise,less vibration,more convenient tool adjustment and tool change. Adding back spring prevents the occurrence of stuck knife problem.
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 13
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 14
Synchronized transmission：
All drives are driven by synchronous wheels and synchronous belts with low mechanical noise and high accuracy.
Electrical control
Adopting domestic listed companies' first-line brand "Xinjie" servo drive system and "lnovance" frequency conversion speed regulation system, the stability is high
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 15
Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 16
Machine installation project：
1. Paper towel box film opening device can be installed to open or cut off the local film. 2. A cursor tracking system for film printing can be installed to track and locate the pattern of film printing surface, and the position of window and film pattern sticking is always the same


5 . Configuration list


The name of an article
Brand
Place of production
Servo motor
XINJIE
jiangsu
Inverter
lnovance
shenzhen
Main motor
Cross
Shanghai
Regulated power supply
OMRON
Japan
Vibrating motor
OLI
dongguan
Roll rubber machine
ADDKA
Taiwanjoint
Pump
GEBIAO
TaiZhou
Human Machine Interaction
XINJIE
jiangsu
Low voltage electrical appliance
People
electric appliance
Shanghai
PLC
XINJIE
jiangsu
Feed belt
Fu Di
Guangzhou
5 m PVC belt conveyor (blue)
Farman
Shanghai manufacturing
Perforated PVC belt (blue)
Farman
Shanghai manufacturing
Heavy duty rolling bearing
NSK
Japan
Light load rolling bearing
HRB
Harbin
Synchronous Belt
SUBAKE
China Taiwan



Other hot selling products

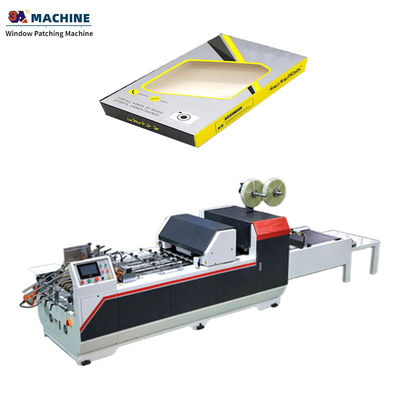

Paper Folding Machine L540 * W130 * 160cm Full-automatic speed 650S Window Patching 17
