Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Product Type: | Printing Products |
| Processing Type: | Printing Products | Voltage: | 380V, 220/380V |
| Power: | 4.5KW | Dimension(L*W*H): | 1650cmx1250cmx1350cm |
| Weight: | 380 Kg | Warranty: | 1 Year |
| Production Capacity: | 15m/min | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2023 |
| Warranty Of Core Components: | 1.5 Years | Core Components: | PLC |
| Model: | CQT-720 | Maximum Width: | 620mm |
| Laminating Speed: | 0-15m/min | Laminating Temperature: | 60-130 |
| Motor Power: | 0.75kw | Power Of Electric Heater: | 4.5kw |
| Dimensions (LxWxH): | 1650cmx1250cmx1350cm | Operating Weight: | 380kg |
| Pressure 0-10Mpa: | 0-10Mpa | Port: | HUANGPU |

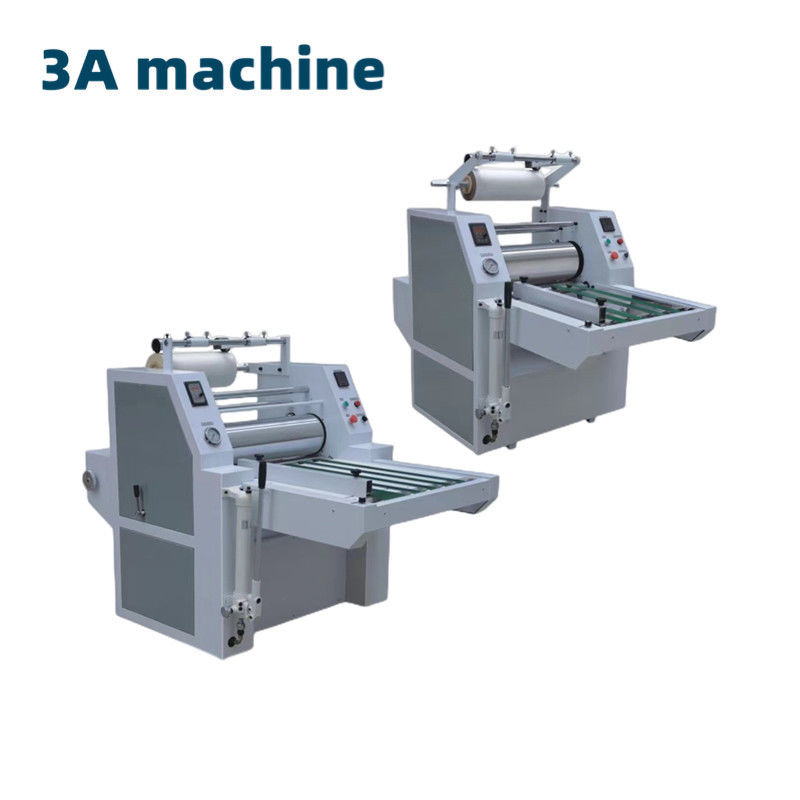

The CQT-520/720/900/1200 hydraulic laminating machine has a small footprint, convenient operation, fast speed, automatic temperature control and speed regulation, automatic paper conveying function, and automatic one-time cutting of excess materials, which can replace the cutting machine.
This machine is made of pre coated polyester film and can be widely used in window packaging boxes. The surface lamination of food boxes, books and magazines, drawings, advertisements, documents, laser glass, and other products. The printed products after lamination are waterproof, durable.
This machine covers a small areais operated convenientlyruns fast. It is equipped with automatic temperature-control and speed- regulation, automatic feeding. Several rolls or redundant rolls can be slit at one time, so this machine is regarded as a slitter.
The machine adopts pre-coated film as the materialIt is widely used for lamination on the surface of window packing paper boxes various books, mapspicturescertificates,holographic cellophane etc. After the above products are laminatedthey have the features of water resistance,clear graphic arts and strong three-dimensional sense.

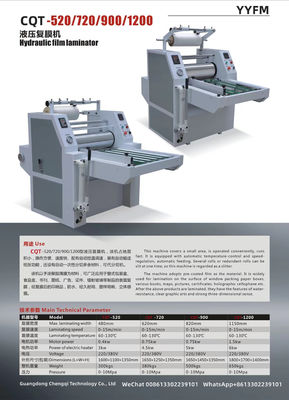

Main Technical Parameter
| Machine Model
| CQT-520 | CQT-720 | CQT-900 | CQT-1200 |
| Maximum lamination width Laminating width
|
400mm | 620mm | 820mm | 1150mm |
| Laminating speed
| 0-15m/min | 0-15m/min | 0-15m/min | 0-15m/min |
| Laminating temperature
| 60-130 | 60-130 | 60-130 | 60-130 |
|
Motor power | 0.4kw | 0.75kw | 0.75kw | 1.5kw |
| Power of electric heater
| 3kw | 4.5kw | 5kw | 6kw |
| Voltage | 220/380V | 220/380V | 220/380V | 220/380V |
| Dimensions (LxWxH)
| 1600x1100x1350 | 1650x1250x1350 | 1650x1450x1350 | 1800x1700x1400 |
| Operating Weight | 300kgs | 380kgs | 500kgs | 650kgs |
| Pressure 0-10Mpa
| 0-10Mpa | 0-10Mpa | 0-10Mpa | 0-10Mpa |
More Service details
Questions : What is the production time after placing an order?
Answer : About 15 days.
Questions : Do you have machines in stock?
Answer : Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
