| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Product Type: | Paper Bag Making Machine |
| Processing Type: | Paper Folding Machine | Voltage: | 220v |
| Power: | 680w | Dimension(L*W*H): | 55*55*135cm |
| Weight: | 90 Kg | Warranty: | 1 Year |
| Production Capacity: | 300 M/min | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 2 Years | Core Components: | PLC |
| Product Name: | Cold Glue Spray System | Type: | 3ACQ5 6 Channels 5 Cold Glue Guns |
| Function: | Spray Point Or Line | Maximum Working Frequency: | 500 Points/sec |
| Maximum Speed: | 300m/min | Spray Precision: | ±1mm(speed Within 100m/min) |
| Pressure Input: | 2-8Bar | Number Of Gun: | Standard Configuration 5 |
| The Electric Quantity: | Standard Configuration 5 | Other Configurations Are Optional: | With 2/3/4/ 6 Guns |
| Port: | HUANGPU |
3A brand---Folding Carton Spray Gluing System
It is a glue spray program control system equipped with a folder gluer. It can be flexibly installed on the folder gluer according to the individual requirements of the product, breaking through the structure and function of the original folder gluer, realizing precise dispensing and producing more types of boxes. The machine uses cold glue glue. The machine runs at high speed, sprays accurately, can be independently adjusted, operates cleanly, and saves glue. Simple and Convenient to Operate.
3ACQ-5 Cold Glue system
( 6 channels 5 cold glue guns)
Performance Characte
The glue position, length, distance can be precisely set by the controller to ensure the quality.
Each spray gun can be individually adjust .
Super fast and no abrasion non-contact cold glue spray gun, completes precise cold glue dot and line spray gluing.
Reduce the consumption of glue, reduce the cost.

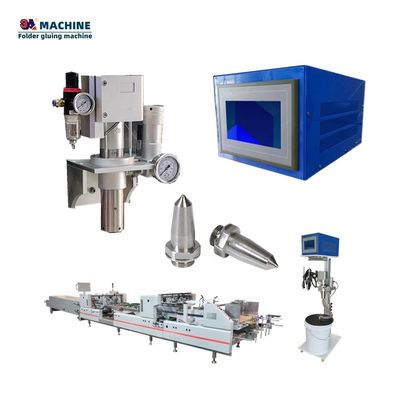

glue pipe joints
Independent control of each gun
PRODUCT SPECIFICATIONS
| Maximum working frequency | 500 points/sec |
| Maximum speed | 300m/min |
| Spray precision | ±1mm speed within 100m/min |
| Pressure input | 2-8Bar |
| Number of gun | 1 |
| The electric quantity | 1 |
| Glue | Cold glue |
| Voltage | AC220V 50-60HZ |
Optional 2 -6 guns
Easy to switch between dots and lines spray glue clean
We have been engaged in printing and packaging machinery for 32 years.We are a professional manufacturer of Folding Gluing Machine,Gluedispenser , Paper cutter computer programming system.. We also jointly sell All kinds of post-press packaging machinery.
More product information Production look factory information
Please click on the link
Optional 2 -6 guns
650 / 800 Straight –line box FOLDER GLUER
530 MINI FOLDER GLUER
LOCK BOTTOM FOLDER GLUER
Used Refurbished Folder Gluer
