Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Product Type: | Printing Products |
| Processing Type: | Printing Products | Voltage: | 220V |
| Power: | 750W | Dimension(L*W*H): | 870mm*780mm*750mm |
| Weight: | 125 Kg | Warranty: | 1 Year |
| Production Capacity: | 2800r/min | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2023 |
| Warranty Of Core Components: | 1.5 Years | Core Components: | PLC |
| UNLOADER MODEL: | NT-210T Pneumatic Pedal | ADJUSTABLE DISTANT: | 42-220mm |
| MAX DIA FOR DRILLING: | 9mm | MIN DIA FOU KRILLING: | 2mm |
| MODE OF DRILLING: | HOLLOW DRILLING | ARM FOR DRILLING NEEDLE: | H-SHAPED (STRAIHT) |
| POWER: | 220V750W | OVERALL DIMENSIONS: | 870mm*780mm*750mm |
| NET WEIGHT: | 125KG | Port: | HUANGPU |

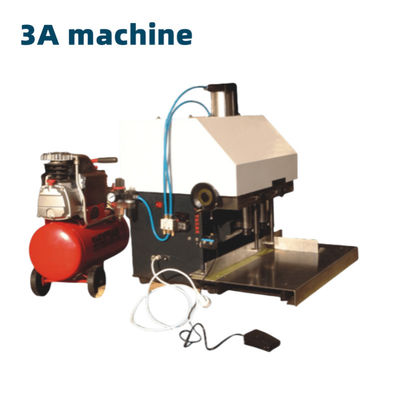

NT-210T Pneumatic pedal desktop double head drilling machine double head drilling machine
Fast speed and high efficiency: can drill two holes simultaneously at once
Good drilling effect: high concentricity of the drilling nozzle, fast punching speed, and smooth punching edges

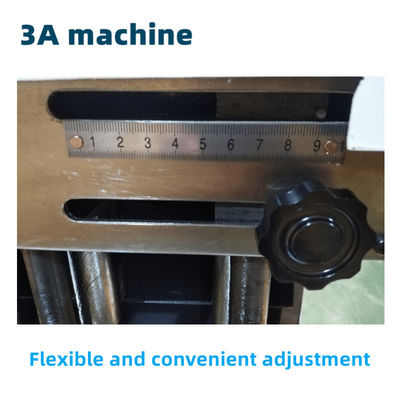

Easy positioning and punching: the workbench can be flexibly adjusted and moved
Simple and convenient operation: The installation and disassembly of the drilling nozzle is very simple
Strong performance stability: 220V power supply, stable motor performance, low noise
Pneumatic device system: greater power, making drilling easier and more effective
| parameter | |
| NUMBER OF HOLES | DOUBLE HEAD |

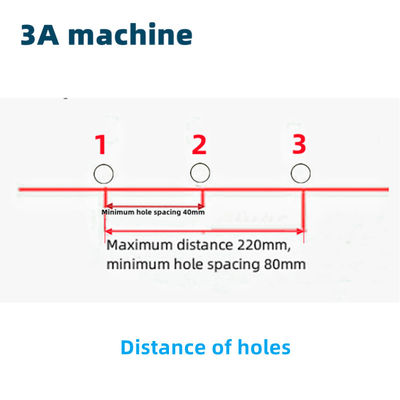

| ADJUSTABLE DISTANT | 42-220mm |
| DRILLING PORT SPEED | 2800r/min |
| MAX DIA FOR DRILLING | 9mm |
| MIN DIA FOU KRILLING | 2mm |
| MODE OF DRILLING | HOLLOW DRILLING |
| ARM FOR DRILLING NEEDLE | H-SHAPED (STRAIHT) |
| POWER | 220V750W |
| OVERALL DIMENSILNS | 870*780*750 |
| NET WEIGHT | 125KG |
More Service details
Questions : What is the production time after placing an order?
Answer : About 15 days.
Questions : Do you have machines in stock?
Answer : Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
