8*12 Size NT502 Pneumatic Waste Cleaning Machine for 220V Voltage Requirement

Name: 8*12 Size NT502 Pneumatic Waste Cleaning Machine for 220V Voltage Requirement
Brand: 8*12 Size NT502 Pneumatic Waste Cleaning Machine for 220V Voltage Requirement
SKU: 8*12 Size NT502 Pneumatic Waste Cleaning Machine for 220V Voltage Requirement
Price: 369.00 USD
Availability: InStock
Rating: 4.9 (187 reviews)

Large Image : 8*12 Size NT502 Pneumatic Waste Cleaning Machine for 220V Voltage Requirement

Product Details:

Place of Origin:	Guangdong, China

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$369.00/sets >=1 sets
Supply Ability:	20 Set/Sets per Month

Contact Now

Detailed Product Description

Applicable Industries:	Manufacturing Plant, Printing Shops, Other	Showroom Location:	None
Condition:	New	Type:	Other
Computerized:	NO	Voltage:	220V
Dimension(LWH):	8*12	Weight:	4.5 Kg
Warranty:	3 Months	Production Capacity:	Other
Key Selling Points:	Easy To Operate	Max. Workable Width:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	3 Months
Core Components:	Other	PLC Brand:	Omron
Port:	Wood Packaging

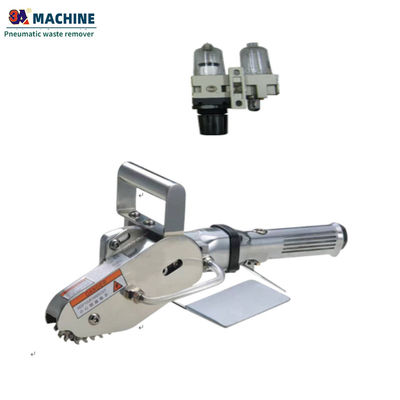

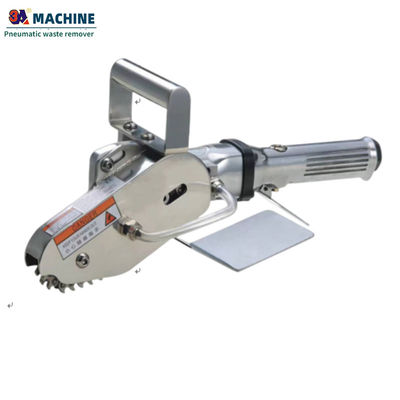

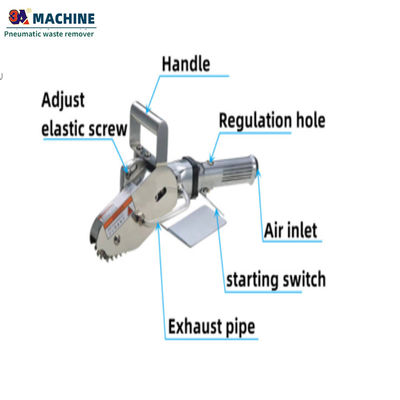

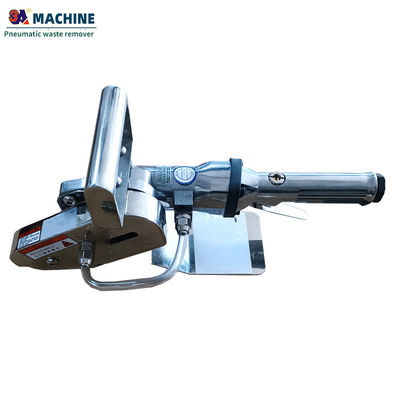

NT502 Pneumatic Waste Cleaning Machine

Strong strength type

This product is pneumatic equipment, which can effectively remove the edge waste after die cutting. The efficiency of this
product is very high, which is 10 times higher than that of manual waste removal, and greatly saves manpower. The equipment is
suitable for shoebox, carton, cigarette box, medicine box, cosmetic box, tube box, tool box and other waste cleaning process.

Technical parameters

Free speed of rotation	2500 R.P.M
Consumption of air	0.34 cM
Inlet gas pressure	6-8 kg
Diameter of inlet pipe	8X12 mm
Net weight	3.8 Kg

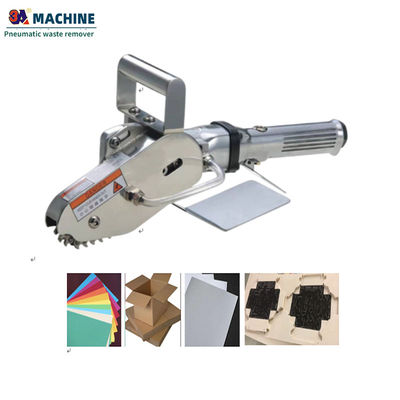

Scope of application

Paper application scope is generally used for more than 150 grams of all kinds of cardboard/three layers of corrugated paper/gray board paper, waste edge width of 12MM or more.

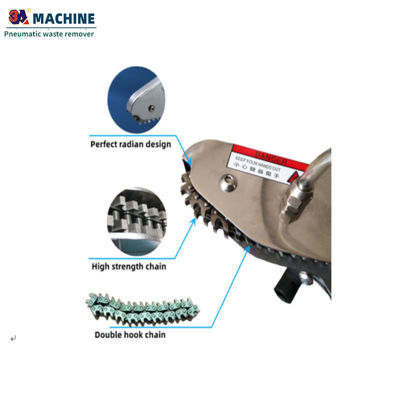

Performance Characteristics

1. Compact structure, perfect design, the radian design of the leading edge of the machine, make the waste cleaning work more
convenient and perfect.
2. The chain is made of high strength alloy steel, with high hardness and wear resistance after hot processing.
3, The machine adopts pneumatic motor, stable quality, good safety.
4. The handle is designed according to the human body, which is conducive to the operator's good grasp.

5. Simple operation, ordinary workers can operate the machine after simple training.

Add the gear oil to the chain 5-6 times a day, 7-8 drops each time.

It is necessary to connect the water and oil separator between the waste cleaner and the air compressor to filter the water in the air, effectively protect the equipment and extend the service life of the equipment.

The device does not work on hard objects. When cleaning the bottom of the paper pile, it is necessary to slow down in advance. Do not hit the wooden bracket, otherwise the chain will be damaged or broken.
