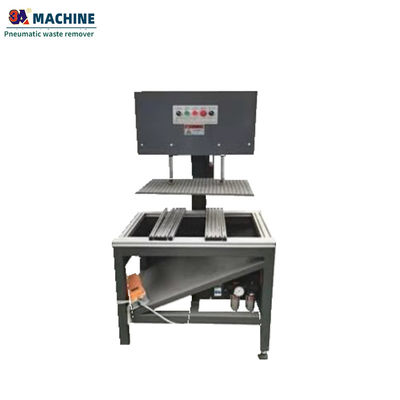

380V Voltage NT800 Waste Cleaning Machine for Customer Requirements

Large Image : 380V Voltage NT800 Waste Cleaning Machine for Customer Requirements

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	3A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1,340.00/sets >=1 sets
Supply Ability:	20 Set/Sets per Month

Contact Now

Detailed Product Description

Applicable Industries:	Building Material Shops, Manufacturing Plant, Printing Shops	Showroom Location:	None
Condition:	New	Product Type:	Other
Processing Type:	Printing Machine	Voltage:	380V
Power:	1.5KW	Dimension(LWH):	8006501360 Mm
Weight:	230 Kg	Warranty:	1 Year
Production Capacity:	Other	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor

Functions of waste remover

It is mainly used for the cleaning of waste paper with inner holes (such as aircraft holes, round holes, square holes, long holes, heterosexual holes, etc.) left after die cutting of various color box cartons in color printing and packaging enterprises. Many key parts are designed and processed to ensure the accuracy of mechanical work and easy operation. The adjustable upper pin plate can install dozens of molds at the same time to clean dozens of waste holes at a time, greatly saving labor and improving work efficiency.

Parameter table

Maximum cardboard format	800*550 mm
The largest waste area of Qing dynasty	600*420 mm
Height of pile	30-100 mm
Minimum hole diameter	3 mm
Number of pinholes loaded	560 pcs
Pin hole spacing	20 mm
The number of waste needles is attached	15 pcs
Number of cylinders	2 pcs
Air consumption	3-5L / min
Compressed air	6-8 par
Maximum pressure	1.5千牛
frequency	50/60 HZ
Power supply voltage	100-240 V
Net weight of machine	230 kg
Overall dimensions	8006501360 mm

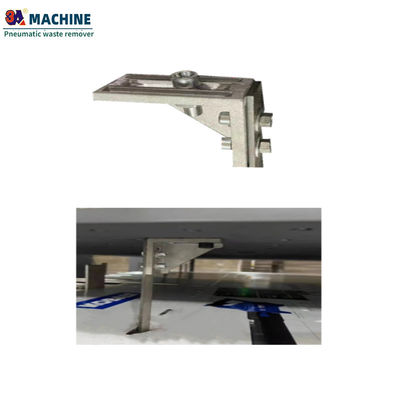

Punch needle installation details

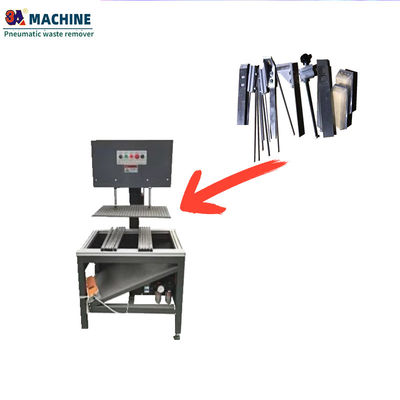

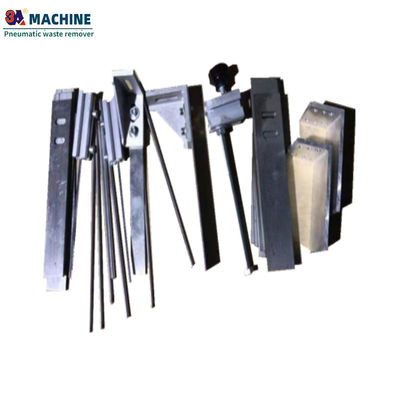

According to different waste cleaning requirements, customize different shapes, different sizes of needles

Minimum hole diameter ：3 mm

improve work efficiency 1. Reduce manual waste removal 2. Reduce the damage to products caused by manual waste cleaning 3. The actual production efficiency of the machine is improved by 25% - 55% 4. The machine cleaning efficiency of the product with more hole locations will play a better role. No matter how many hole locations, the machine will be cleaned for the second time. The manual cleaning is different. The more hole locations, the more time it takes to clean, and the lower the efficiency. Mold and thimble can be customized according to requirements. 5. The waste and inner hole cleaning machine is compact in structure, simple in operation, and very convenient for use. It can be operated by both male and female employees.

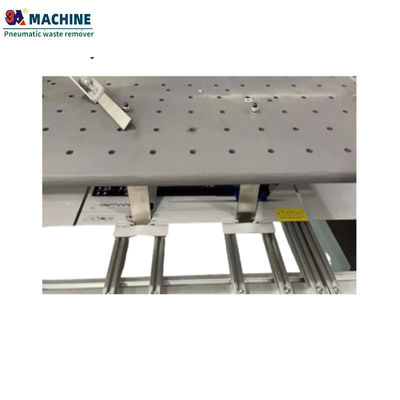

Machine debugging

1. Fix the thimble at the hole position and confirm the hole distance of the product. At first, set the machine to manual mode and slowly adjust the distance between the thimble and the punched hole. 2. Align the sliding block and thimble with the punching hole, and then tighten the Torx screws to fix them on the machine. 3. After aligning the hole position, make sure that the thimble can coincide with the product hole position, and fix the front and rear baffles of the product under the condition that the punching can be cleaned. 4. The height of the stamping paper sheet of each used beard shall not exceed 8cm, and the number of single stamping shall be determined according to the thickness of the product. yield
