Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Product Type: | Printing Products |
| Processing Type: | Printing Products | Voltage: | 380V |
| Power: | 11KW | Dimension(L*W*H): | 390mm*260mm*120mm |
| Weight: | 5500 Kg, 5500kg | Warranty: | 1 Year |
| Production Capacity: | 3000 Pcs/min | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2023 |
| Warranty Of Core Components: | 1.5 Years | Core Components: | PLC |
| Model: | 1020 | Maximum Sheet Size: | 1020mm*740mm |
| Minimum Sheet Size: | 560mm*350mm | Maximum Printing Speed: | 3000 |
| Total Power: | 11KW | Overall Dimensions: | 390mm*260mm*120mm |
| Maximum Printing Size: | 1020mm*720mm | Screen Frames: | 1280mm*1140mm |
| Different Models: | The Price Is Different | Port: | HUANGPU |

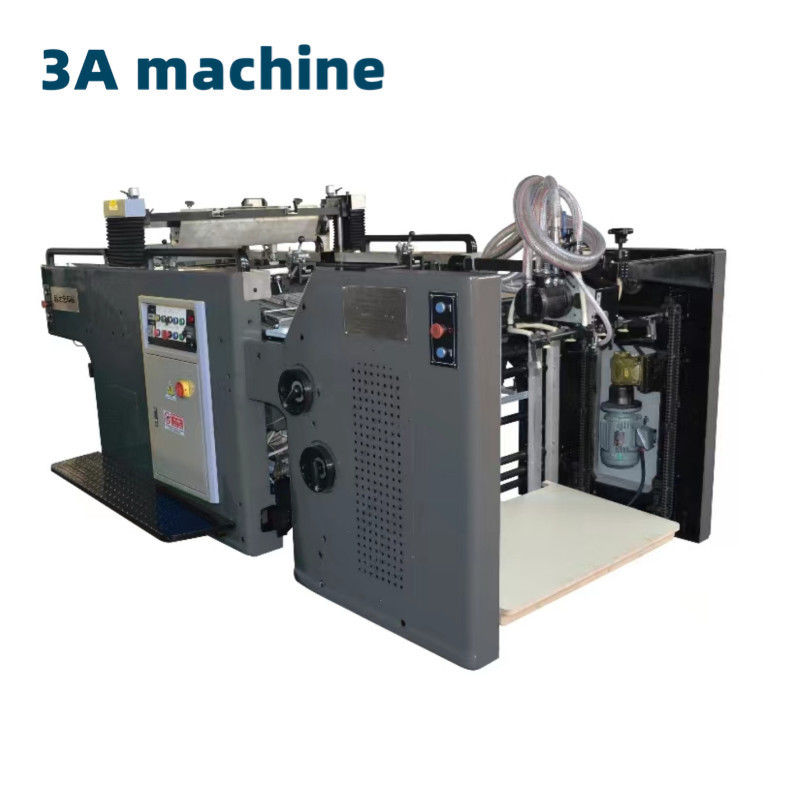

The 1020 Suitable for screen printing of various materials such as sheet, board, soft and hard materials, glass, lenses, display screens, electrical panels, nameplates, acrylic, leather, shoe materials, cardboard, textile fabrics, etc. Especially for soft materials and dot printing, there are obvious advantages.
Performance characteristics
11. Electrical control using PLC
22. Machine speed variable frequency adjustable
33. Contact screen operating device
44. Automatic paper feeder, which can use continuous or single sheet feeding methods
55. The machine is equipped with a mechanical double tension control device
66. Vacuum adsorption paper feeding platform, equipped with rolling balls, rollers, and brush wheels
77. The paper feeding machine is equipped with a pulling gauge device and photoelectric switch detection control
88. The paper feeding table is equipped with paper pressing plates near the embossing drum, and the paper rebounds
99. The paper roller has a hollow adsorption function, and the adsorption force can be adjusted
110. Front gauge is set on the embossing drum and there is a photoelectric switch to detect and control skewness
111. The machine is equipped with a pneumatic screen fixing device
112. Machine equipped with withdrawable mesh frame device
213. The machine is equipped with an ink tray device
314. The machine is equipped with a lifting cam mechanism for the Doctor blade. When the Doctor blade drops, the second drop pressure is in the state
415. The machine is equipped with a pneumatic pressure maintaining device to control the scraping pressure, and the pressure gauge displays the pressure status
516. The machine is equipped with an independent ink knife lifting cam mechanism
617. Vacuum adsorption paper outlet table with 7 cable straps
718. Paper output machine can be folded down at 90 degrees
819. There is a rebound device above the paper output machine
920. The machine is equipped with an automatic oiling machine for lubrication of the main transmission parts
Technical Parameter
| Model | YKP-720 | YKP-780 | YKP-1020 | YKP-1050 |
| Maximum sheet size(mm) | 720×520 | 780×540 | 1020×740 | 1050×750 |
| Minimum sheet size(mm) | 350×270 | 350×270 | 560×350 | 560×350 |
| Maximum printing size(mm) | 720×500 | 780×520 | 1020×720 | 1050×740 |
| Paper thickness | 120-250 | 120-250 | 180-250 | 80-420 |
| Screen Frames(mm) | 880×880 | 940×940 | 1280×1140 | 1300×1170 |
| Maximum printing speed | 3000 | 3000 | 3000 | 4000 |
| Total power(kw) | 8.2 | 8.2 | 11 | 9.8 |
| Weight(kg) | 3500 | 3700 | 5500 | 5900 |
| Overall dimensions(mm) | 370×190×127 | 376×196×127 | 390×260×120 | 3750×3064×1717 |
More Service details
Questions : What is the production time after placing an order?
Answer : About 15 days.
Questions : Do you have machines in stock?
Answer : Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
