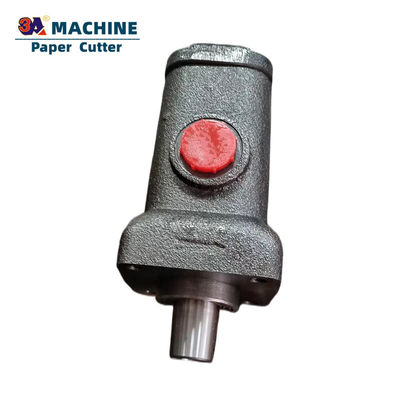

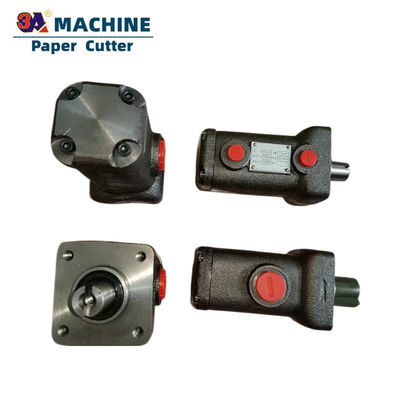

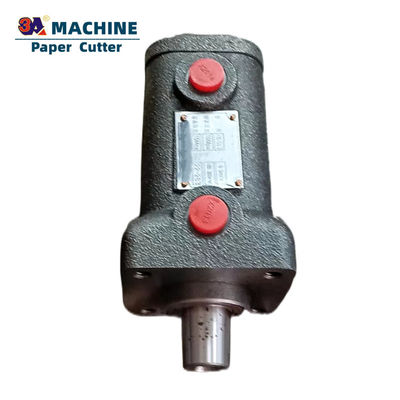

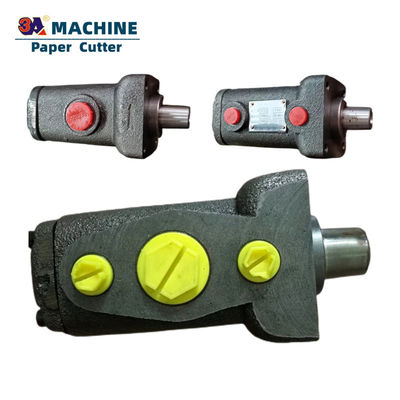

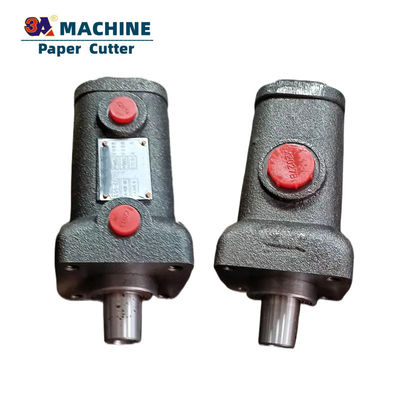

Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92

Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92

Large Image :  Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92

Product Details:
Place of Origin: Shanghai, China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $200.00/sets 1-9 sets
Packaging Details: Carton packaging
Contact Now
Detailed Product Description
Condition: New Warranty: Unavailable
Applicable Industries: Manufacturing Plant, Printing Shops, Other Weight (KG): 4.5
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2022
Hydraulic Paper Cutting: Roller Oil Pump

Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 0
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 1
Paper cutter oil pump 2, air vent oil pump 1000-3000 r/MIN10-15mpa for PL92 115 137 paper cutter

Pump parameter table
model：
PL-D5/3
Rated pressure
10MPa
Maximum pressure
15MPa
displacement
5/3ML/r
speed
1000-3000min

Detail decomposition
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 2
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 3
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 4
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 5
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 6
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 7
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 8
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 9

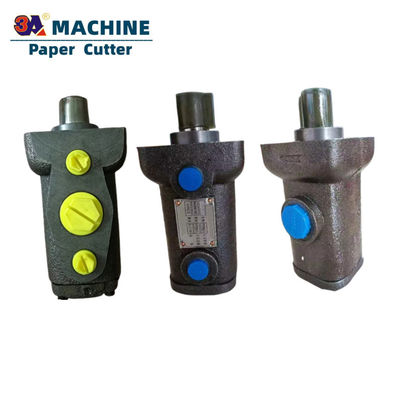

The original three hole oil pump, the above introduction is a two hole substitute

Another related product
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 10
Precautions for pump use
1、Working selection: 1. When selecting the pump, its rated pressure should be appropriately higher than the working pressure to ensure the service life of the pump and the normal operation of the system. 2. The operating speed shall conform to the specified value of the pump.
2、connect： 1. The connection between the vane pump drive shaft and the output of the prime mover should preferably use an elastic coupling, with different shaft degrees not greater than 0.05mm, and the deflection of the two axes not greater than 5 °. Direct belt pulley driving is not allowed. 2. When installing the vane pump, be sure to confirm the rotation direction of the pump.
3、Tubing：The oil inlet and outlet pipes must match the pump. The suction range shall not be greater than 50cm.
4、start-up：During initial use or operation after long-term storage, the pump shall be filled with clean working oil before starting, otherwise it is not allowed to start. After inching start, it shall first run for half an hour without load. If there is no adverse phenomenon, it shall be gradually adjusted to the required pressure. If the pump is found to have abnormal temperature rise, leakage, vibration and noise during operation, it shall be stopped immediately for inspection. When stopping, it shall be unloaded first and then stopped.


Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 11

5、medium：1. When installing the hydraulic pipeline and no parts, it must be strictly kept clean. The pipeline shall be free of any free sundries. The solid pollution particles in the hydraulic oil are most likely to aggravate the wear of the surface of the other parts moving relative to the hydraulic pump. In particular, granular impurities with a certain hardness shall be removed. 2.A filter shall be installed at the oil inlet of the pump, and the recommended accuracy is 100 μ m. There shall be sufficient oil flow. Precision filter shall be set in the system, with recommended precision of 15-25 μ m。 3.Suitable hydraulic oil shall be selected according to the service conditions, and 32 # - 68 # ordinary hydraulic oil is
6、tank：The oil tank shall be designed with reasonable volume to ensure that the pump can work under normal oil temperature. A partition shall be set in the tank to eliminate air bubbles caused by oil return. The oil tank shall be properly sealed to prevent impurities or dust from polluting the oil medium.

Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 12
Hydraulic Paper Cutting Machine Parts 4.5KG Weight Roller Oil Pump for Polar Cutter 92 13
