Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Die-cutting Machine |
| Computerized: | NO | Voltage: | 380V |
| Dimension(L*W*H): | 2270mm * 3100mm * 2150mm | Weight: | 16500 Kg |
| Warranty: | 1 Year | Production Capacity: | 360 |
| Key Selling Points: | Easy To Operate | Max. Workable Width: | 16500mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1.5 Years |
| Core Components: | Motor | PLC Brand: | 3A |
| Model: | ML 2000 | Maximum Effective Cutting Area: | 2000mm X 1400mm |
| Working Speed: | 12-14times/min | Maximum Blade Length: | ≤58m |
| Power: | 15kw | Net Weight: | 16500 Kg |
| Overall Dimensions: | About2270mm * 3100mm * 2150mm | Port: | HUANGPU |

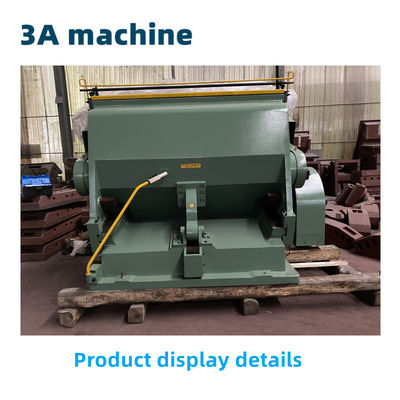

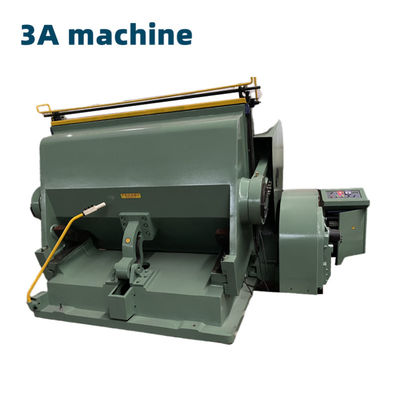

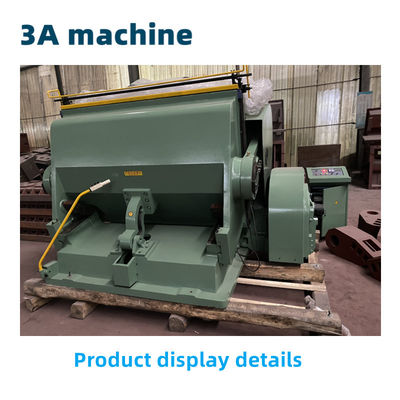

ML2000 sheet Die Cutting Machine creasing machine
This equipment is used for die-cutting various sheet materials, such as cardboard, corrugated cardboard, plastic, and leather, and is widely used.
Main characteristics of the machine:
1. The sliding bearing is made of high-quality cast copper alloy, which is wear-resistant and shock-absorbing.
2. The body is made of high-quality materials and cast as a whole, with high strength and good rigidity. It has continuous pressure cutting and opening delay, and the delay range can be adjusted freely.
More Service details
Questions : What is the production time after placing an order?
Answer : About 15 days.
Questions : Do you have machines in stock?
Answer : Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
Questions : Do you have machines in stock?
Answer: Standard type of machine, there is a large amount of inventory, special models, need to place orders customized.
